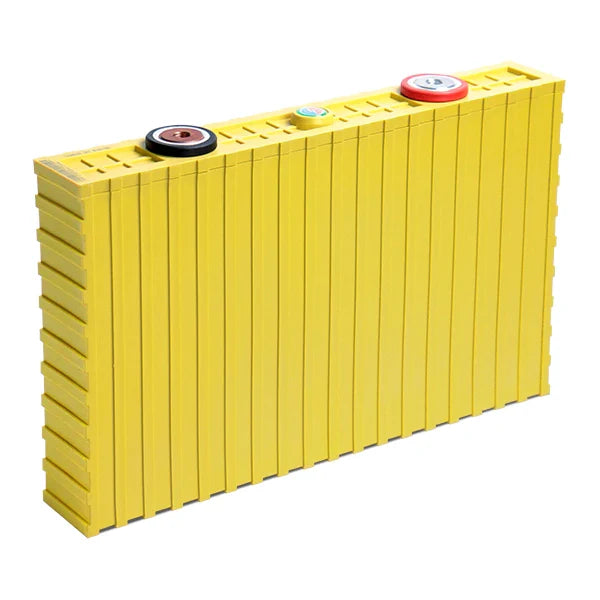

WINSTON TSWB-LYP400AHA 3.3V, 400Ah
WINSTON TSWB-LYP400AHA 3.3V, 400Ah
Original ThunderSky Winston part number: WB-LYP400AHA, TSWB-LYP400AHA
Recommended initial and subsequent charging is to 3.65 V.
The minimum voltage is 2.5 V.
Maximum discharge current is 3C continously.
Operating temperature -45°C up to 85°C (discharging)
Energy density is 93.43 Wh/kg
MOQ - 2-50 PRICE SHOWN IS FOR 1 X BATTERY WHOLESALE
For UK and NI - Contact London Office - FREE Shipping to Mainland UK and Ireland only -
For EU - Contact Barcelona office - Quote 'WINSTON-UK'
All other Countries - Please contact us for product prices and shipping costs
https://thunderskywinston.uk (UK Office)
These battery cells are suitable for all traction applications including electric vehicles. Fully complies also for stationary applications - such as energy storage.
There is no Selfdischarging effect.
Can be recharged at any state of discharge - no memory effect
LiFePO4 is a very safe technology, not spontaneous combustion, does not react with moisture or with oxygen.
All cells are supplied new directly from the manufacturer.
Original Woodenbox contains 6 cells is 543*509*425mm large and weights 90kg.
Weight (kg) | 13.5 |
Connector | M14 |
Height (mm) | 285 |
Width (mm) | 461 |
Depth (mm) | 65 |
Nominal Voltage (V) | 3.3 |
Cycle Life | 70% DOD (>7000) |
Internal Resistance (mOhm) | <0.3 |
Capacity (Ah) | 400 |
Max discharge current (A) | 4000 |
Optimal discharge current (A) | 200 |
Max charging current (A) | 1200 |
Optimal charging current (A) | 200 |
