WINSTON 12V/90Ah
WINSTON 12V/90Ah
Regular price
£560.01 GBP
Regular price
Sale price
£560.01 GBP
Unit price
/
per

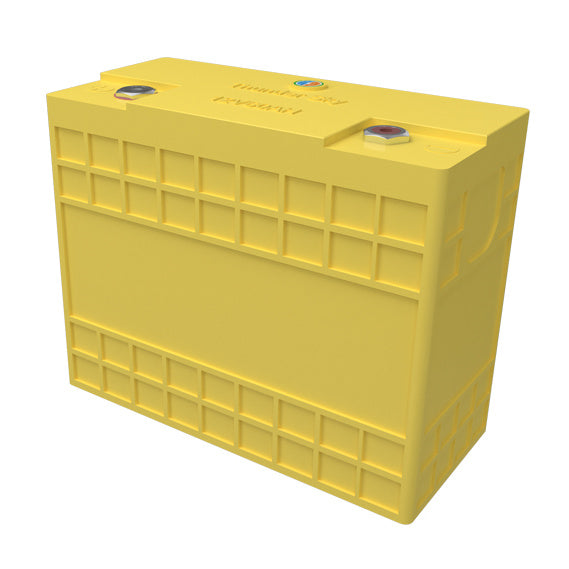

Lithium Yttrium High Power Battery LiFeYPO4 (12V/90Ah) - Original Winston Battery product WB-LP12V90AH (formerly ThunderSky TS-LP12V90AH, Thunder-Sky TS-LP12V90AH) - capacity 90Ah - dimensions 282x155x248 mm
MOQ 2-50 PRICE SHOWN IS FOR 1 X BATTERY
For UK and NI - Contact London Office - FREE Shipping to Mainland UK and Ireland only -
For EU - Contact Barcelona office - Quote 'WINSTON-UK'
All other Countries - Please contact us for product prices and shipping costs
https://thunderskywinston.uk (UK Office)
*
NOTE:
The monolithic 12V batteries do not have any PCM (any electronics) inside. They consist of finely balanced cells with identical perfomace. The battery must be managed and operated as a single monolithic 12V block. We do not recommend operation in serial connection. For system with higher voltage 24/36/48V and more, we recommend to use Single cells 90Ah + BMS123Smart Gen3
These batteries are suitable for all traction applications including electric vehicles. Fully complies also for stationary applications - such as energy storage.
Also possible to use for starting internal combustion engines. In the Principles do not require any special electronics for use LP 12V batteries for starting, but it is very important to keep min. and max. voltage, so we recommend using any voltage indication unit, which you will be informed about the current Voltage. This is important especially for frequent starting. We recommend use some simple car Voltmeter.
We offer a indication voltmeter PROM-VOLT
There is no Selfdischarging effect.
Can be recharged at any state of discharge - no memory effect
LiFeYPO4 is a very safe technology, not spontaneous combustion, does not react with moisture or with oxygen.
The monolithic 12V batteries do not have any PCM (any electronics) inside. They consist of finely balanced cells with identical perfomace. The battery must be managed and operated as a single monolithic 12V block. We do not recommend operation in serial connection. For system with higher voltage 24/36/48V and more, we recommend to use Single cells 90Ah + BMS123Smart Gen3
Nominal voltage of the battery is 12 V and the operational voltage is 11,5 V - 15 V.
The maximum charging voltage for initial charge is 15 V.
Recommended subsequent charging is to 14,6 V.
The minimum voltage is 11 V.
Maximum discharge current is 3C continuously.
Operating temperature -25°C up to 80°C (discharging)
These batteries are suitable for all traction applications including electric vehicles. Fully complies also for stationary applications - such as energy storage.
Also possible to use for starting internal combustion engines. In the Principles do not require any special electronics for use LP 12V batteries for starting, but it is very important to keep min. and max. voltage, so we recommend using any voltage indication unit, which you will be informed about the current Voltage. This is important especially for frequent starting. We recommend use some simple car Voltmeter.
We offer a indication voltmeter PROM-VOLT
There is no Selfdischarging effect.
Can be recharged at any state of discharge - no memory effect
LiFeYPO4 is a very safe technology, not spontaneous combustion, does not react with moisture or with oxygen.
